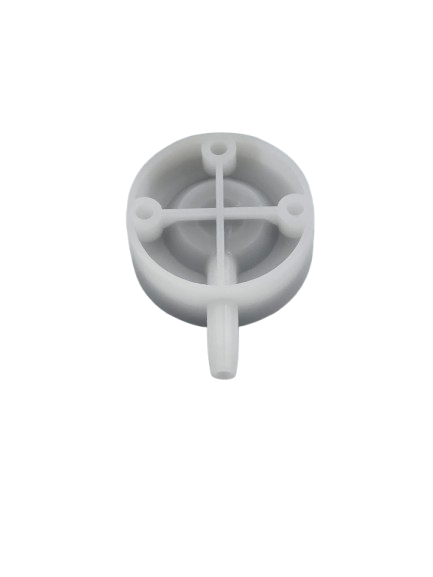

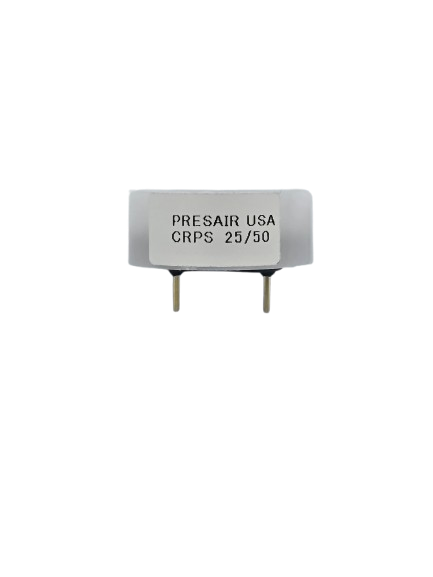

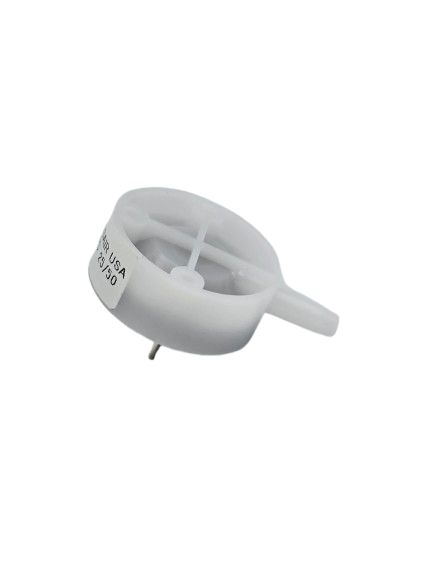

PC Board Mount Switch – 1 Radial Spout

$24.95

This miniature single pole pcb switch is used to sense pressure where moderate accuracy is sufficient. These switches can sense pressure as little as 6 inches of water to 60 psig. Actuation point is customer specified and set at the factory.

  • • Radial mount with one side air spout – pressure only!
  • • 1 AMP resistive @ 250 VAC (Based on Max pressure)
  • • SPST
  • • UL and CUL Recognized



Clear

Factory Set Point *

Please type in your desired factory setting.
Pressure range = 6″ of Water to 65 PSI
Vacuum range = 6″-200″ of Water

Description

Printed Circuit Board Mount Switch
Low profile, Radial Spout

This miniature single pole pcb switch is used to sense pressure where moderate accuracy is sufficient. The pcb mount switch is also suitable for use as air switches in conjunction with air actuators.

PCB switches are single function controls with internal electrical contacts designed to mount directly to a printed circuit board. These basic component switches feature momentary switching logic in a compact design to add pneumatic actuation to any electronic control circuit.

These miniature single pole switches are designed for applications where moderate accuracy is sufficient. These switches can sense pressure as little as 6 inches of water to 60 psig. Actuation point is customer specified and set at the factory.

  • • Radial mount with one side air spout – pressure only!
  • • 1 AMP resistive @ 250 VAC (Based on Max pressure)
  • • SPST
  • • UL and CUL Recognized



For more options view the product sheet below or contact us!

view-more-button    contact-us-button

Additional information

Weight 5 oz
Dimensions 5.13 x 8.63 x 1.63 in
Switch Mode

Differential, Pressure, Vacuum

Switch Circuit

DPST, SPST
