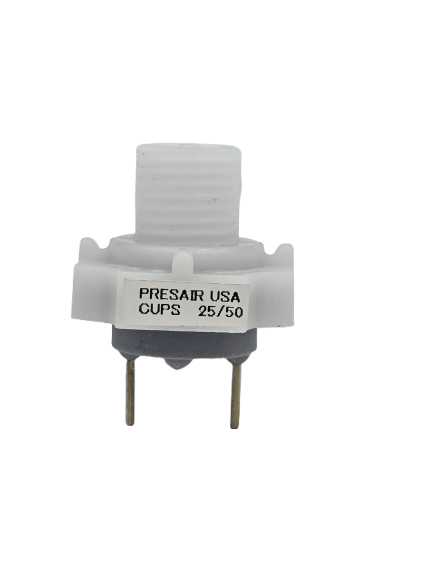

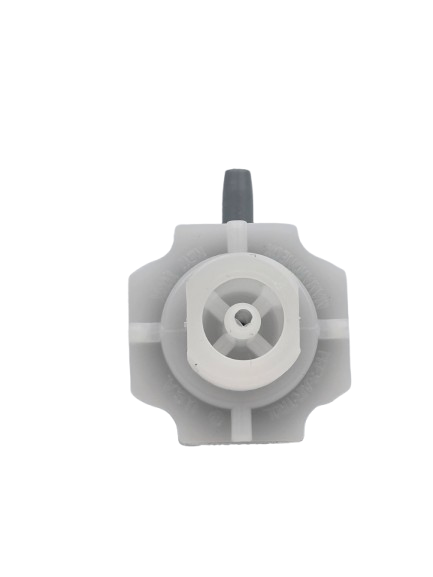

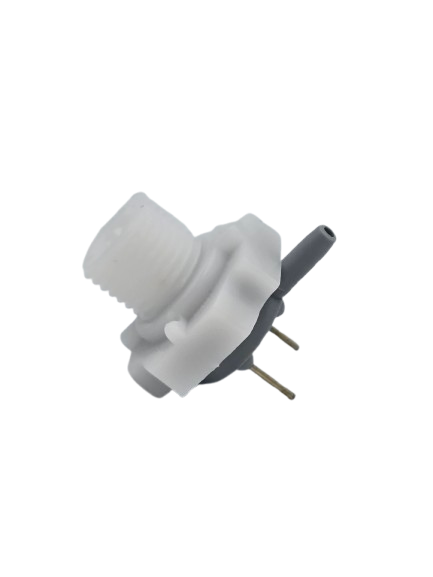

PC Board Mount Switch – 9/16″-18 UNF Mounting Threads

$27.45

This miniature single pole pcb switch is used to sense pressure where moderate accuracy is sufficient. These switches have a pressure range of 6 inches of water to 60 psig and a vacuum range of 6 inches of water to 200 inches of water. Actuation point is customer specified and set at the factory.

  • • 9/16″-18 UNF Mounting Thread w/ Pressure Center and Vacuum Side Air Spout
  • • 1 AMP resistive @ 250 VAC (Based on Max pressure)
  • • SPST
  • • UL and CUL Recognized



Factory Set Point

Please type in your desired factory setting.
Pressure range = 6″ of Water to 65 PSI
Vacuum range = 6″-200″ of Water

Description

Printed Circuit Board Mount Switch

PRESSURE CENTER AIR SPOUT & VACUUM SIDE AIR SPOUT

This miniature single pole pcb switches are used to sense pressure, vacuum or differential pressure where moderate accuracy is sufficient. The pcb mount switch is also suitable for use as air switches in conjunction with air actuators.

PCB switches are single function controls with internal electrical contacts designed to mount directly to a printed circuit board. These basic component switches feature momentary switching logic in a compact design to add pneumatic actuation to any electronic control circuit.

These miniature single pole switches are designed for applications where moderate accuracy is sufficient. These switches have a pressure range of 6 inches of water to 60 psig and a vacuum range of 6 inches of water to 200 inches of water. Actuation point is customer specified and set at the factory. This model can be user adjusted using the set screw.

  • • 9/16″-18 UNF Mounting Thread w/ Pressure Center and Vacuum Side Air Spout
  • • 1 AMP resistive @ 250 VAC (Based on Max pressure)
  • • SPST
  • • UL and CUL Recognized

For more options view the product sheet below or contact us!

View Button Presair  Contact us

Additional information

Weight 5 oz
Dimensions 5.13 × 8.63 × 1.63 in
Switch Mode

Differential, Pressure, Vacuum
