Description

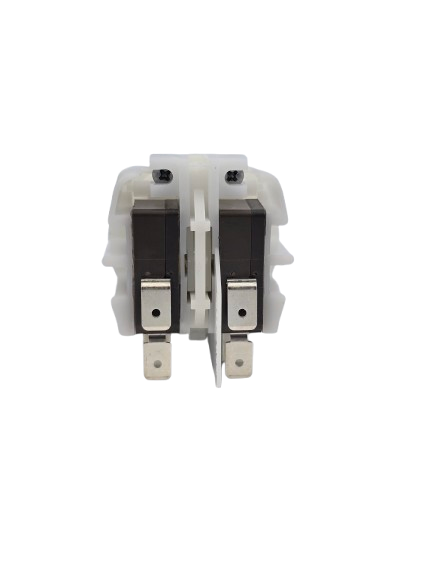

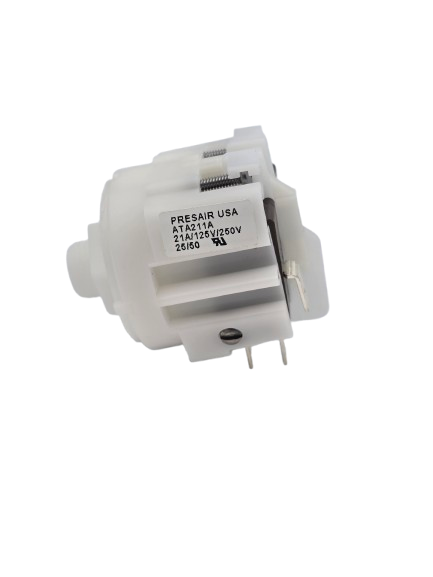

ATA211A
STANDARD AIR SWITCH

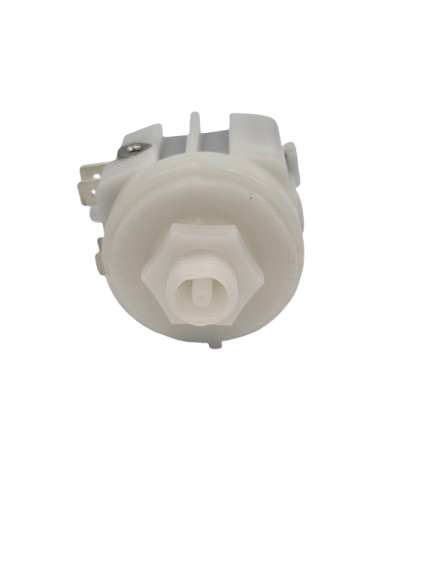

Mounting Style: Threaded Mount 9/16-18 with Center Air Spout
Action: Alternate Latching
Switch Circuit: DPDT
Current Rating: 21 Amp, 1 hp @ 125VAC
ATA211A | Alternate Latching Air Switch, DPDT
$32.95
- DPDT (double pole, double throw) with latching contacts
- Rated at 21 amps
- Mounts with a hex nut and 9/16″ thread
- In stock
- Direct from manufacturer
- UL and CUL Recognized
Additional information
| Weight | 6 oz |
|---|---|
| Product Type | Air Switch |
| Switch Type | DPDT |
| Volts | 125 VAC |
| Amps | 21A |
