Description

MSA325B

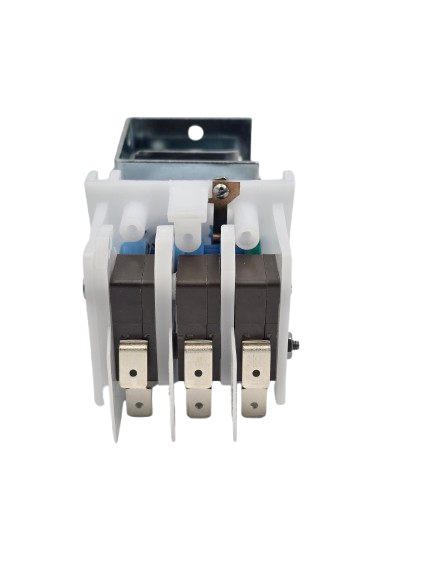

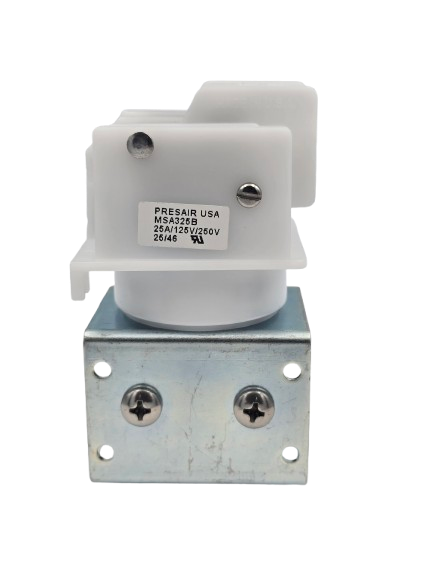

MAGICTROL four function AIR SWITCH w/ solenoid

The Magictrol Air Switch is used to sequentially switch up to four separate pieces of equipment. Each time an air pulse is applied, a stepping cam is rotated through three or four positions, actuating a combination of two or three microswitches. Magictrol switches can be used up to 15 feet away from actuator or foot pedal. Distances of 100 feet away can be reached with solenoid and momentary air switch.

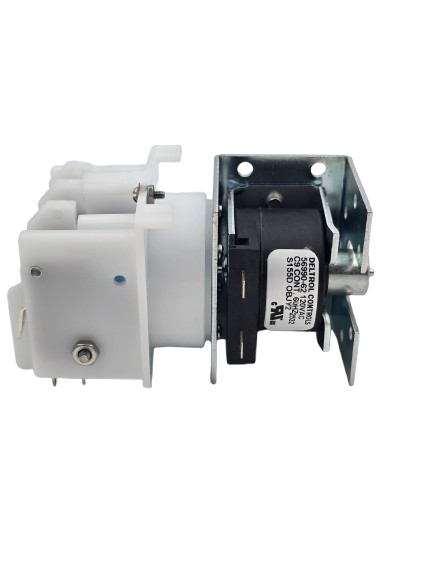

Solenoid actuated four function sequencing switch. Solenoid is pulsed on and off for each Magictrol sequence step.

Action: Four function, Sequential – See sequence below.
