Description

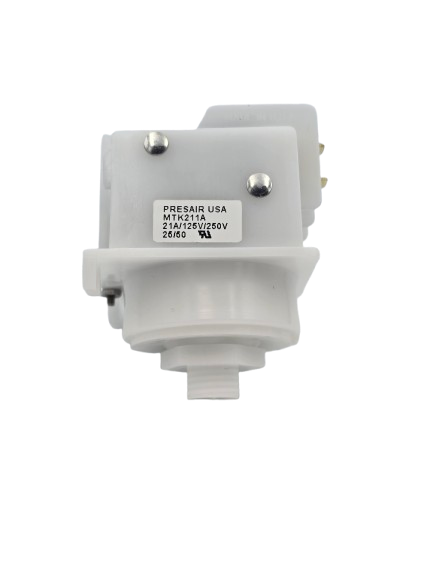

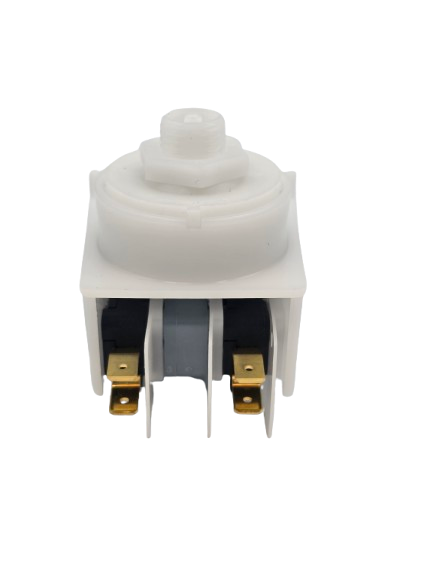

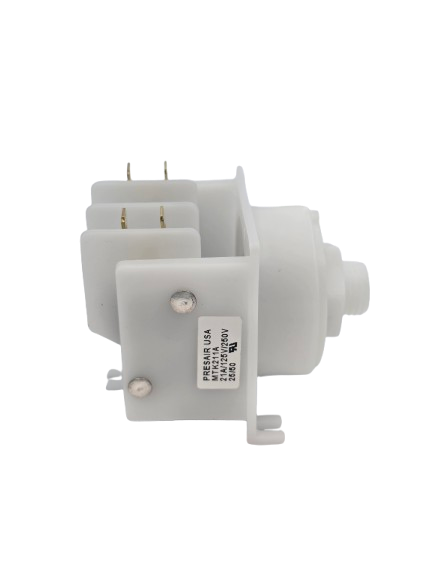

MTK211A

MAGICTROL four function AIR SWITCH

Mounting Style: 9/16″-18 UNF Mounting Threads with Center Air Spout

Action: 3 Function, Sequencing Black Cam

Switch Circuit: DPDT

UL Rating: 21 Amp, 1 hp @ 125VAC

View more product details.

Additional Description: MTK211A Magictrol Air Switch. Three function air switch, black cam. Sequential air switch is DPDT, 1HP@125VAC. In stock. Direct from manufacturer.

The Magictrol Air Switch is used to sequentially switch up to four separate pieces of equipment. Each time an air pulse is applied, a stepping cam is rotated through three or four positions, actuating a combination of two or three microswitches. Magictrol switches can be used up to 15 feet away from actuator or foot pedal. Distances of 100 feet away can be reached with solenoid and momentary air switch.
