Air Bellow Actuator

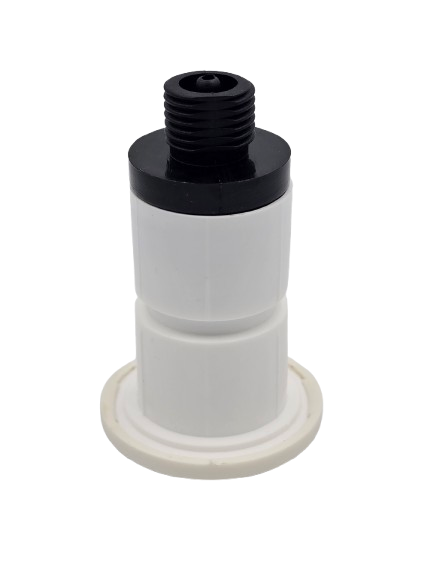

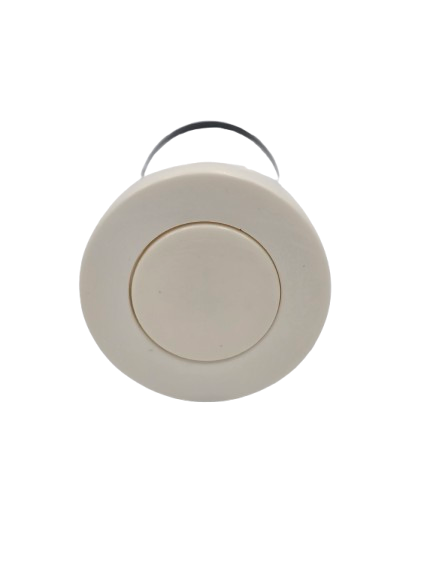

HARD PUSH BUTTON, WHITE
Presair air bellows are designed for customer applications where conventional pneumatic actuators are powerful enough, or where hazardous conditions would be of concern. The Presair air bellow is paired with air tubing which lead to an air switch. When the air bellow is pressed the air pressure travels through the tubing to the air switch moving the diaphragm, which then actuates the micro switch. Different colors and styles are available, consult factory for custom designs.
All hard air actuators have a sealed internal bellow to prevent water from entering the air tube that connects the air button to the air switch. When pressed, the air actuator sends a pulse of air to the air switch which safely controls the equipment. Different colors and styles are available, consult factory for custom designs.
- • Hard Push Button
- • White Button Top
- • Stem Length: 1.77″
- • 1.36″ Button Diameter
- • Button can push-fit into 1″ schedule 40 PVC pipe.
For more options view the product sheet below or contact us!
