What Is a Garbage Disposal Air Switch?
A garbage disposal air switch is a push-button switch that uses a pulse of air to turn a garbage disposal on and off. Instead of sending electricity to the button, the button sends air through a small tube to an air switch located underneath the sink. This makes air switches especially useful for kitchen islands and other installations where a traditional wall switch isn’t convenient.
How Does a Garbage Disposal Air Switch Work?

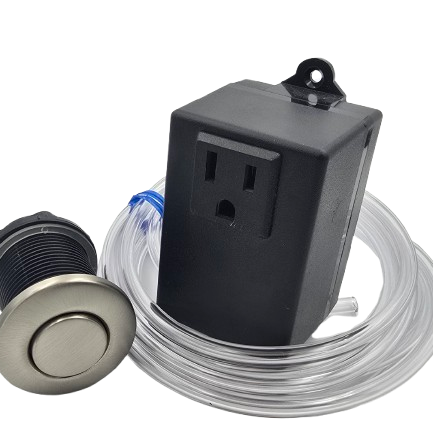

The operating principle is surprisingly simple. A typical system contains three primary components:
- Push Button – the part you press at the sink or countertop.
- Pneumatic Tubing – carries the air signal from the button.
- Air Switch / Control – receives the pneumatic signal and controls electrical power to the disposal.
Pressing the button compresses an internal bellow and generates a small pulse of air.
Press Button -> Air Pulse -> Pneumatic Tubing -> Air Switch -> Disposal
No wireless communication is necessary, and the button doesn’t need to be electrically wired.
Learn more about how garbage disposal air switches work here.
Where Is the Air Switch Installed?
The part most people call the ‘air switch’ is often actually the push button they see beside the sink. The complete system extends underneath the countertop.
The button is generally mounted through the sink deck or countertop. Pneumatic tubing runs from the button to the air-switch control underneath the sink. The electrical control is connected to the garbage disposal’s power system according to the product’s installation instructions.
So while you see only a small button above the counter, the actual switching system operates underneath it.
Read our simple how-to install guide for more information.
Why Are Air Switches Common on Kitchen Islands?
Kitchen islands often don’t have a convenient wall beside the sink for a traditional electrical switch. An air switch allows the disposal button to be mounted directly next to the island sink.
That gives the person using the disposal a conveniently positioned physical control.
Learn more about why garbage disposal air switches are a great solution for kitchen islands.
Air Switch vs. Traditional Wall Switch
A conventional wall switch controls the disposal electrically at the switch. An air-switch button creates air pressure rather than directly switching the electrical circuit.
This means line voltage doesn’t need to be present at the push button. Electrical switching instead occurs at the air-switch control. That’s also what allows the user-operated button to be positioned on a sink deck or countertop.
Air Switch vs. Wireless Switch
A wireless disposal switch sends an electronic signal between a transmitter and receiver. An air switch sends a physical pneumatic signal through tubing.
Air switches don’t need a battery at the button, don’t require wireless pairing and aren’t dependent on radio communication. Wireless switches can offer advantages of their own, particularly when avoiding pneumatic tubing or a countertop opening is important.
Find out more about garbage disposal air switches vs. other solutions.
Is There Electricity at the Air Button?
No line voltage is required at the pneumatic push button. The button’s job is simply to create an air pulse. Electrical switching occurs elsewhere in the system.
However, the disposal and electrical air-switch control still use electricity and must be properly installed.
Does an Air Switch Need Compressed Air?
No. You don’t need an air compressor, compressed-air tank or external pneumatic system.
Pressing the button generates the small amount of air pressure needed to actuate the switch. Think of the button itself as a tiny manual air pump.
What Types of Garbage Disposals Work With Air Switches?
Garbage disposal air switches are commonly used with AC-powered disposals connected to an electrical supply beneath the sink.
Compatibility depends on the electrical rating of the particular air-switch control and the electrical requirements of the disposal. Don’t determine compatibility by brand name alone.
- Supply voltage
- Disposal electrical requirements
- Air-switch electrical rating
- Manufacturer installation requirements
PresAir’s plug-in garbage disposal air-switch control is rated for 15 amps at 120 VAC. Verify the specific disposal’s requirements before installation.
Momentary vs. Alternate-Action Air Switches
Not all air switches operate the disposal in exactly the same way.
A momentary configuration operates while the button is being pressed and stops when the button is released.
An alternate-action or latching configuration changes state each time the button is pressed: first press -> ON; second press -> OFF.
Which operating method is appropriate depends on the specific application and control configuration.
How Do You Install a Garbage Disposal Air Switch?
- Install the Push Button – mount the pneumatic button through an appropriately sized opening in the sink or countertop.
- Connect the Tubing – connect pneumatic tubing to the button and route it beneath the sink.
- Connect the Air-Switch Control – attach the other end of the tubing to the appropriate air-switch control.
- Connect the Disposal – connect the disposal and control according to the manufacturer’s electrical instructions.
- Test the System – press the button and confirm that the air signal properly actuates the electrical control and disposal.
Exact installation requirements vary by product and kitchen configuration. Follow the manufacturer’s instructions and applicable electrical/building requirements.
What Are the Advantages of a Garbage Disposal Air Switch?
- Convenient sink or countertop control
- No line voltage at the push button
- No battery at the pneumatic button
- No wireless pairing
- No compressed-air source required
- Simple pneumatic operating principle
- Useful for kitchen islands
- Multiple button styles and finishes are available
An air switch isn’t the only way to control a garbage disposal. It’s a different – and particularly straightforward – way to separate the button you press from the electrical switch controlling the appliance.
Looking for a Garbage Disposal Air Switch?
PresAir Garbage Disposal Air Switch Kits provide the components needed to control a compatible garbage disposal using a countertop-mounted pneumatic push button.
Choose from multiple button finishes and switching configurations to match your kitchen and preferred operation.
Visit our online store today to shop for a garbage disposal air switch.
